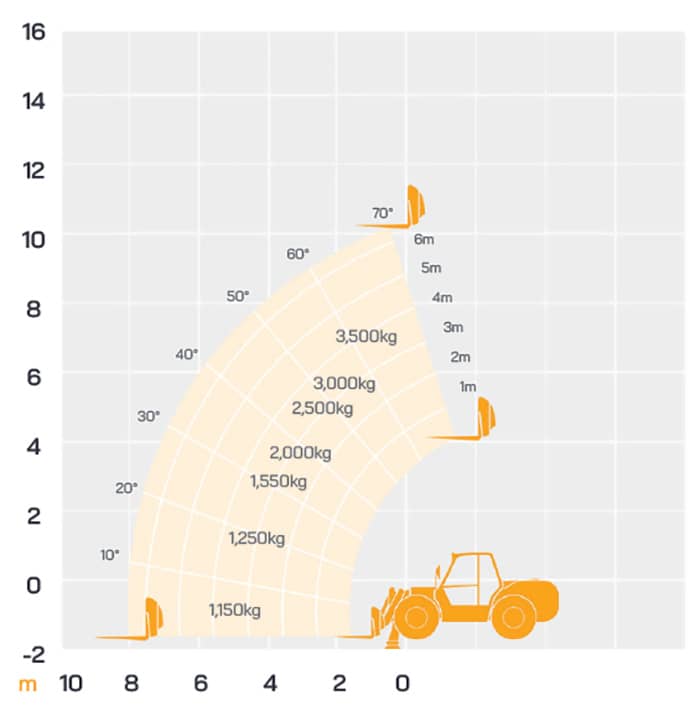

| Working Height | up to 12.28m |
| Max Lift Capacity | 3,500kg |
| Lift Capacity (at max height) | 3,500kg |
| Lift Capacity (at max reach) | 1,150kg |
| Max Forward Reach | 8.10m |
| Reach at Max Height | 0.46m |
| Weight | 9,720kg |

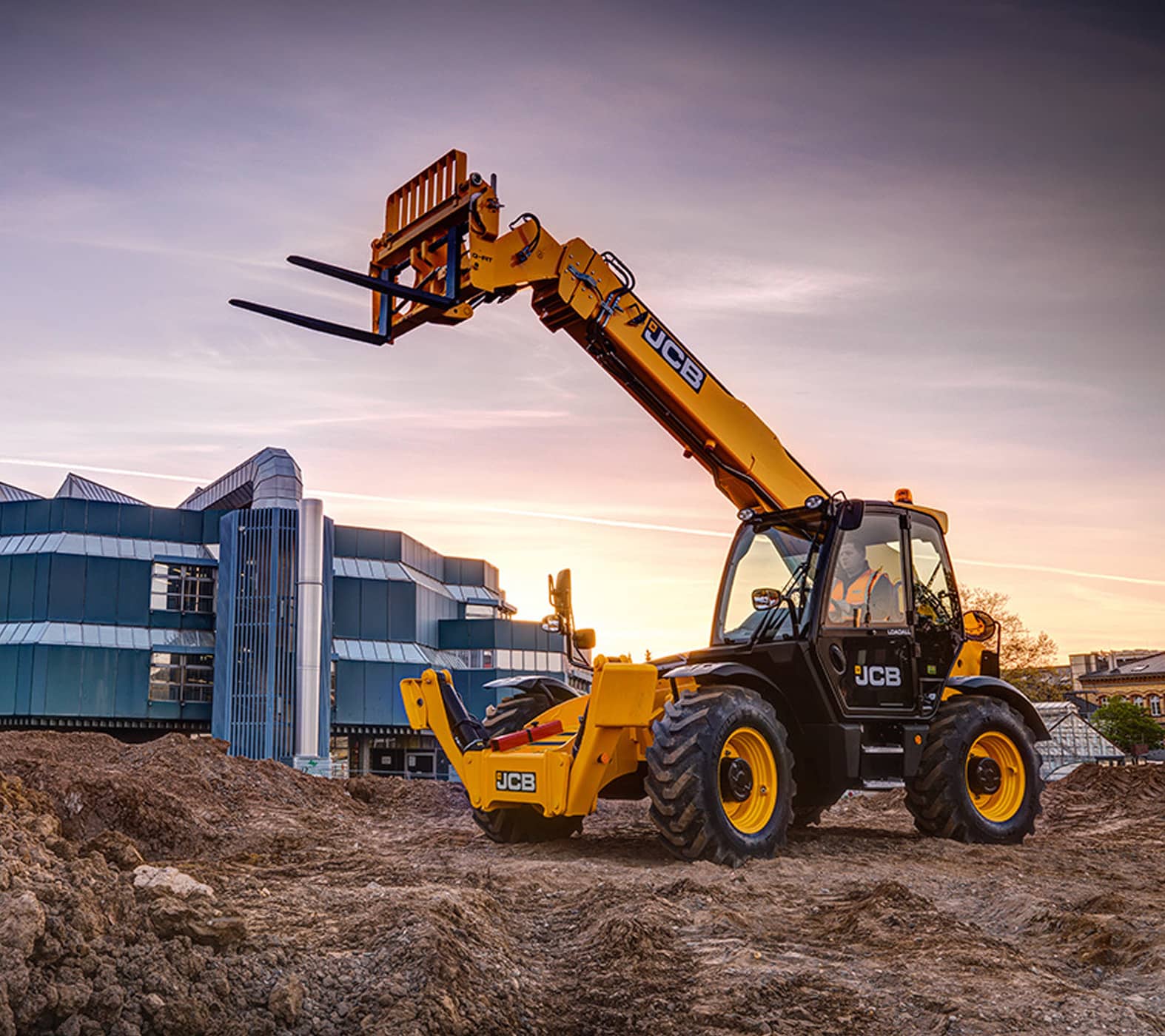

Class-leading JCB hydraulics produce the fastest cycle times, ensuring the most efficient lifting, extending and pushing. The JCB 535-125 HiViz Construction Loadall telehandler boasts excellent manoeuvrability and fast travel times across site, courtesy of a compact wheelbase and large steering lock angles. With 4WD as standard, you get plenty of traction and performance even in soft, muddy areas. 2WD can be selected to minimise tyre wear and fuel use. The JCB EcoMAX T4F engine delivers 75hp (55kW) of power and 400Nm of torque. This is produced at just 1300 rpm, offering you optimum response, as well as improved cycle times and tractive effort. JCB’s optional Smoothride System (SRS) improves load retention and increases operator comfort (and therefore productivity) when travelling at speed on the road or on uneven fields. You can now also engage SRS manually with the boom in any position. Multi-function single lever servo control provides fast and accurate load placement. Controlling your 535-125 HiViz Loadall’s direction is easy too, with just a flick of a switch. The 81kW (109hp) and 93kW (125hp) EcoMAX engine options are fitted with a variable speed cooling fan that automatically reacts to ambient temperature, adjusting fan speed for maximum economy and minimum noise. An optional reversing fan can clear dust and debris from your telescopic handler’s cooling system to maintain performance.
