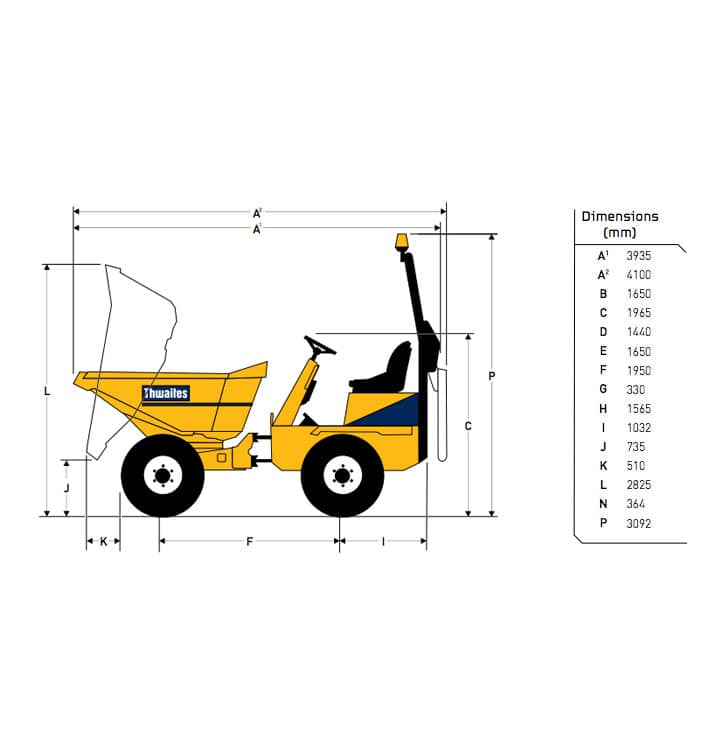

| Overall Height | up to 3.09m |
| Overall Length | 3.94m |
| Overall Width | 1.65m |
| Max Loading Capacity | 3000kg |
| Weight | 2160kg |
Engine Noise Levels Transmission Speeds Tyres Brakes and Axles Kinglink Chassis Skip Max. safe load 3000 kg Heaped 1640 litres Struck 1210 litres Water 990 litres Yanmar 3TNV88, 24.8 kW/33.2 bhp (nett) at 2800 rpm, 3 cylinder water-cooled direct-injection diesel. Max. torque 111 Nm (82 lbf ft). Electric starting, hour meter, battery isolator switch and heavy duty cyclonic air cleaner positioned within the lockable engine compartment. Operator’s ear 84 LpA, airborne sound power level 101 LwA (to 2000/14/EC). Heavy duty gearbox, three forward, one reverse, constant mesh change on the move with nickel chrome case hardened gears. Drive through 240 mm dia spring-damped heavy duty clutch. Transfer reduction box. 1 4.7 km/h ( 2.9 mph) 2 10.8 km/h ( 6.7 mph) 3 19.9 km/h (12.3 mph) Reverse 5.2 km/h ( 3.2 mph) 295/80 x 15.3 10 ply Track grip tread Totally enclosed multiplate oil-immersed discs mounted on rear axle effective on all four wheels. Automatic adjustment for wear. Hand-operated parking brake. Heavy-duty axles with epicyclic reduction and fully floating halfshafts. Front and rear chassis constructed from deep-section folded steel plate, with three-point Kinglink giving centre articulation and oscillation for better stability, traction and extra safety on site. Remote greasing point provided for lubrication of top Kinglink articulation pin. Hydraulically operated, 6 mm steel base plate, fully welded, mouth and sides of skip reinforced with box sections giving greater strength to minimise skip damage. No material traps. Powerswivel mounted on ball bearing turntable with powered rotation through 180° by means of twin slewing cylinders, operated by a single dual axis control lever. Automatic safety lock holds skip in central position when travelling.
