Genie Z30/20N RJ
National Coverage with BGD

Genie Z30/20N RJ

electric cherry picker

Specifications
Summary
Working Heightup to 10.89m
Working Outreach6.25m
Platform Capacity227kg
Width x Length1.19m x 5.31m
Stowed Height2.00m
Weight6,450kg
Hire Genie Z30/20N RJ 01908 921007
  • Operates in tight places
  • Zero tailswing and zero front arm swing in stowed and raised working positions, along with its 1.19 m (47 in) wide chassis, make this boom the only one with true narrow aisle access
  • The 1.22 m (4 ft) jib boom has 139° range of motion, so it can be positioned above or below horizontal
  • The RJ model features a rotating jib that adds an industry-leading 180° (2 x 90°) of horizontal rotation
  • 180° powered platform rotation for precise platform positioning and easy operation
  • The Sep-Ex drive motors and controller provide automatic hill braking and ramp braking
  • The Sep-Ex drive system allows maximum drive performance resulting in 35% gradeability and 4.8 Km/h (3 mph) travel speed
  • The Sep-Ex motor controller eliminates the need for forward/reverse contactors or speed sensors. This reduces complexity and improves the reliability of the drive system
  • Dual parallelogram riser design allows ascent and descent along a vertical plane without retracting or extending the boom
  • Up to 227 kg (500 lb) lift capacity

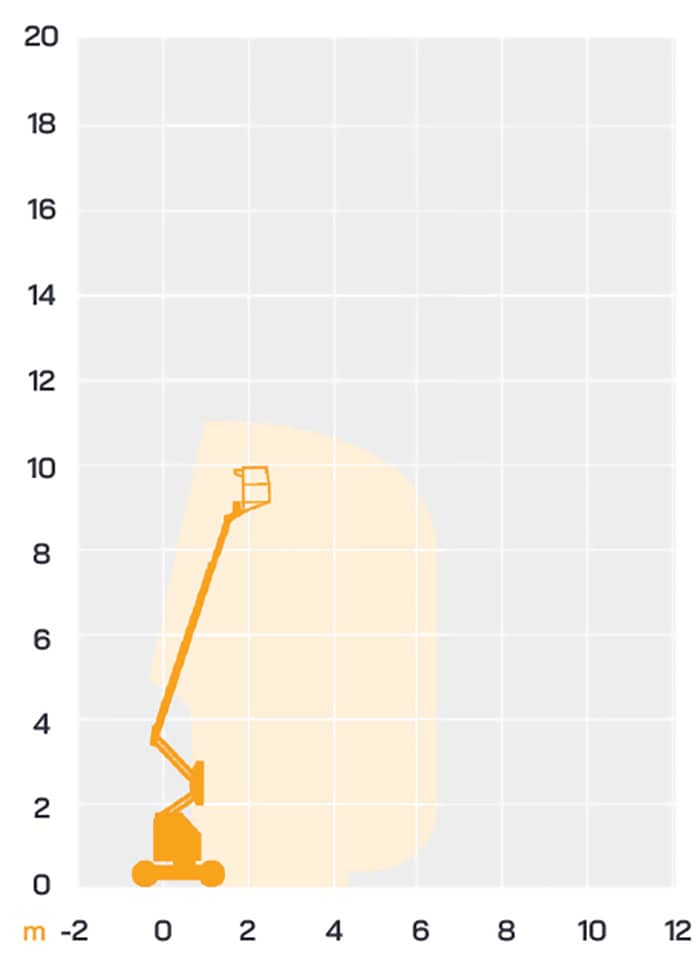

Genie Z30/20N RJ Working Envelope

The Genie Z30/20N RJ cherry picker

The Genie Z30/20N RJ has a rotating jib which gives you up to 180 degrees of horizontal rotation in addition the the normal 139 degrees of vertical movement.
